30 Tons Mould Cylinder Fluting Paper Machine

30 Tons Mould Cylinder Fluting Paper Machine is 1600 Small Capacity Mould Cylinder Design Fluting Paper Making Machine And Pulp Making Production Line From Wood Pulp, OCC, Straw, etc.

• 3 Months
• 0-500T
• Min. order :1 Set

• 1600 Small Capacity Mould Cylinder Design Fluting Paper Making Machine And Pulp Making Production Line From Wood Pulp, OCC, Straw, etc.

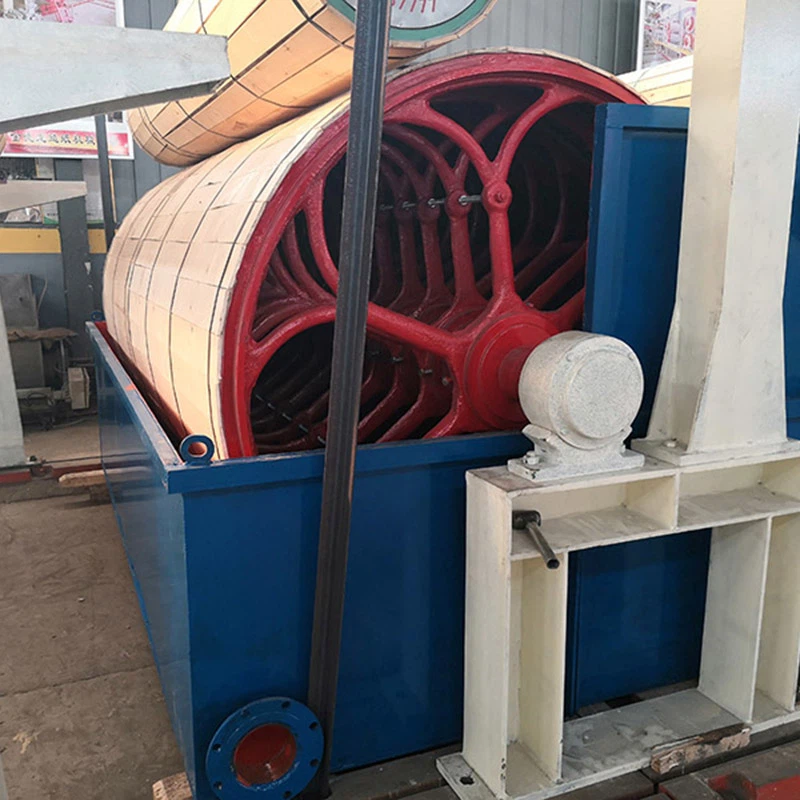

This 1600 mould cylinder paper machine applies to make fluting paper with grammage 80-160gsm. The maximum width on pope reel is 1600mm, working speed is 80-100m/min, capacity 30 tons per day, calculate at 24 hours. It could design with left-hand or right-hand type based on drive position.

▼ Design tension for feltis 4KN/m, working tension is 3KN/m.

√ Stock Preparation -- Approach System -- Return Unit -- Mould Cylinder -- Press Section -- Dryer Section -- Pope Reel -- Air Hood -- Rewinder -- Vacuum System -- Air Compressor -- Auxiliary Parts

√ Concentration: 0.2-0.4%

√ Paper dryness out of wire part 13-18%, go into dryer cylinder 35-38%, at pope reel 90-92%.

Strict quality control department will conduct complete quality inspection, to make sure frame alignment, rubber roll coating and crown, and all parts are correct and perfect paking to deliver to our customer.

Before shipping we will assemble and test all parts in the pre-assembly workshop to ensure the alignment and integrity of the equipments, and complete all parts even nuts and bolts.

We will send engineer to customer paper mill to support on installation and machine test running, also will train the workers on opperation.

Turn-Key service is our advantage, we have professional design engineer, machnical engineer and production enginners all have rich experience on paper mill.

,cylinder mould type and fourdrinier wire design.Fluting paperis mainly used for corrugator board packing market,grammage from 60gsm to 160gsm.
